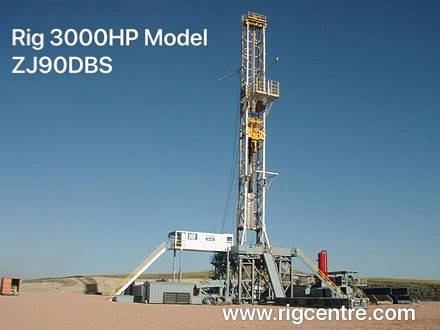

Description:

General

Rig Name:Rig Den #02

Rig Type:Electric with VFD Systems

Rig Rating Power:3,000HP

Drilling Depth;9000 Meter with 5"DP

Rig Moves Loads:140 Loads

Camp Move Load; load

MAST

Make/Type:Honghua 675/48-K,K-TYPE,Cantlever Mast

Clear Height:48m(157ft)

Mast Base:front side x lateral face:10m x 2.8m

Static Hook Load:6,750KN

Racking Capacity :5"DP 28 stand:250 columns

                 :9"DC 2columns,8" DC 6 column

SUBSTRUCTURE

Make:Honghua (Bulit to API 4F),DZ675/12-S

Rig Floor Dimensions:39" x 43" Drill floor

Height:Height 39" Overall, 33" Clear

Max Static Load:6,750KN

SetBack Load;3,250 KN

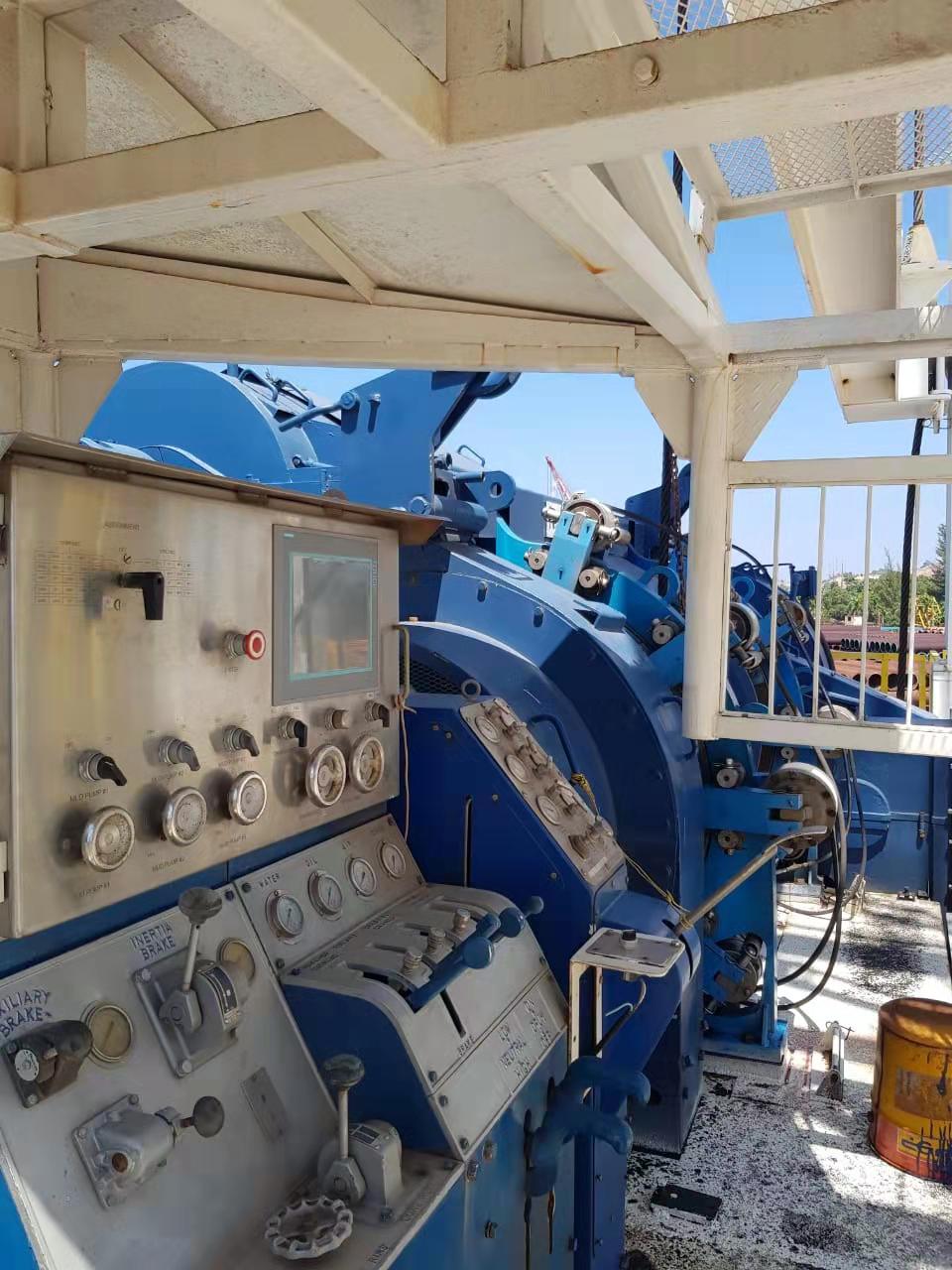

DRAWWORK

Make/Model:HONGHUA,JC90DB

Rated Input Power：4,290HP(3,200KW),Single speed,

                    :Gear Driven,Two AC motor driven,

Drill Line Diameter:45mm x 2,000 meter

Auxiliary Brake：Regenerative dynamic brake disc,

                 :Paking & Emergency brakes

TOP DRIVE

Make/Model: CANRIG,1275AC

Rated Load Capacity: 750 TON (API-8C,PSI-1)

Torque: 71,500ft

ROTARY TABLE

Make/Model:HONGHUA,ZP495

Rate Load Capacity:6,750KN

Table Opening:49-1/2"

Drive Type:Independnet Driving Device

CAMP

Capacity:Pax

POWER SUPPLY

Engines Make/Model:Caterpillar CAT-35128

Engine Power:5 x 1,750 HP

Power Generator:Caterpillar SR4B

Electrical Power:5 x 1,900 KVA

Emergency Power:1 x Caterpillar 3406

Rig Power Voltage:600 Volt,50 Hz

Power Control:VFD Systems

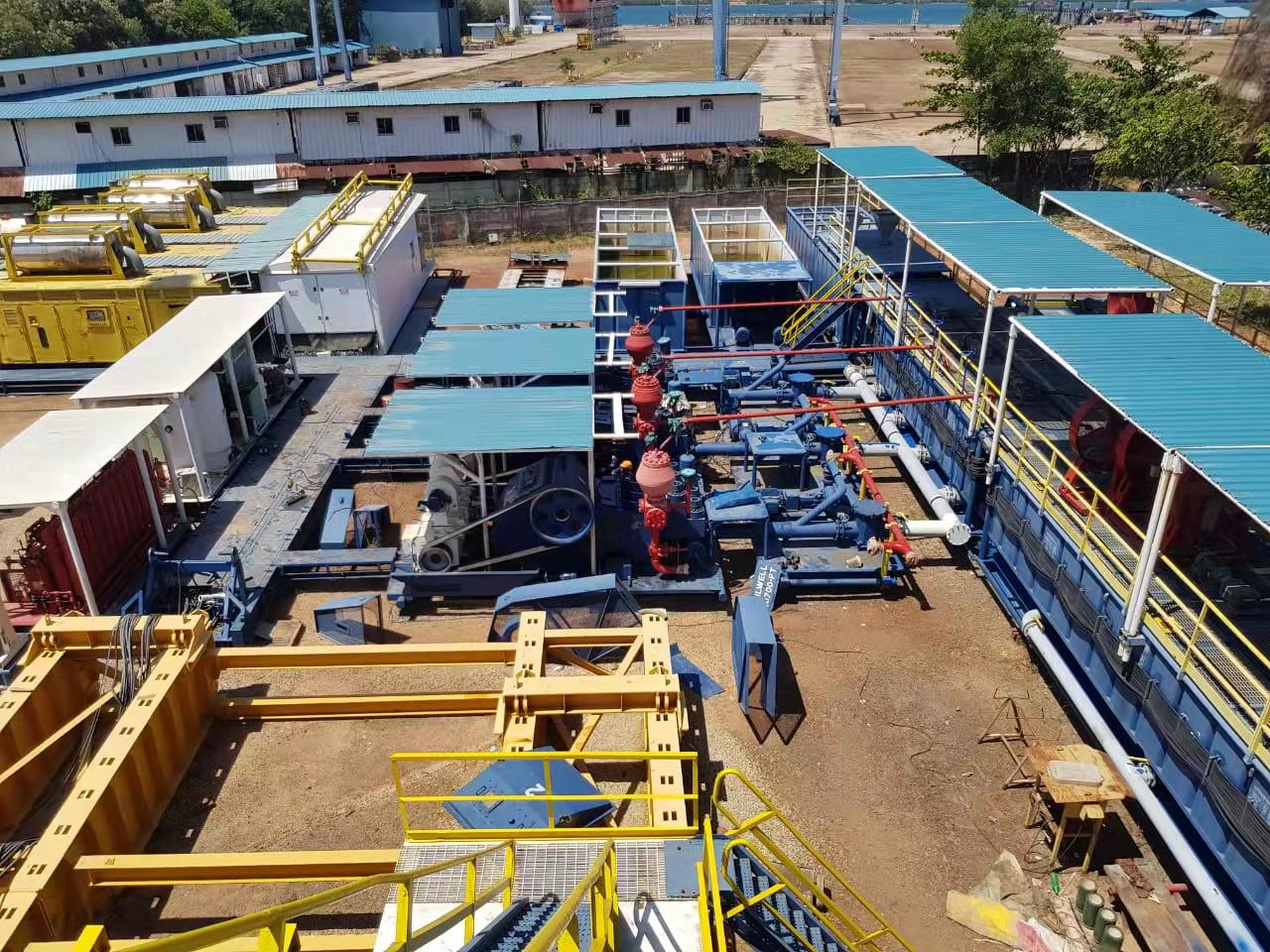

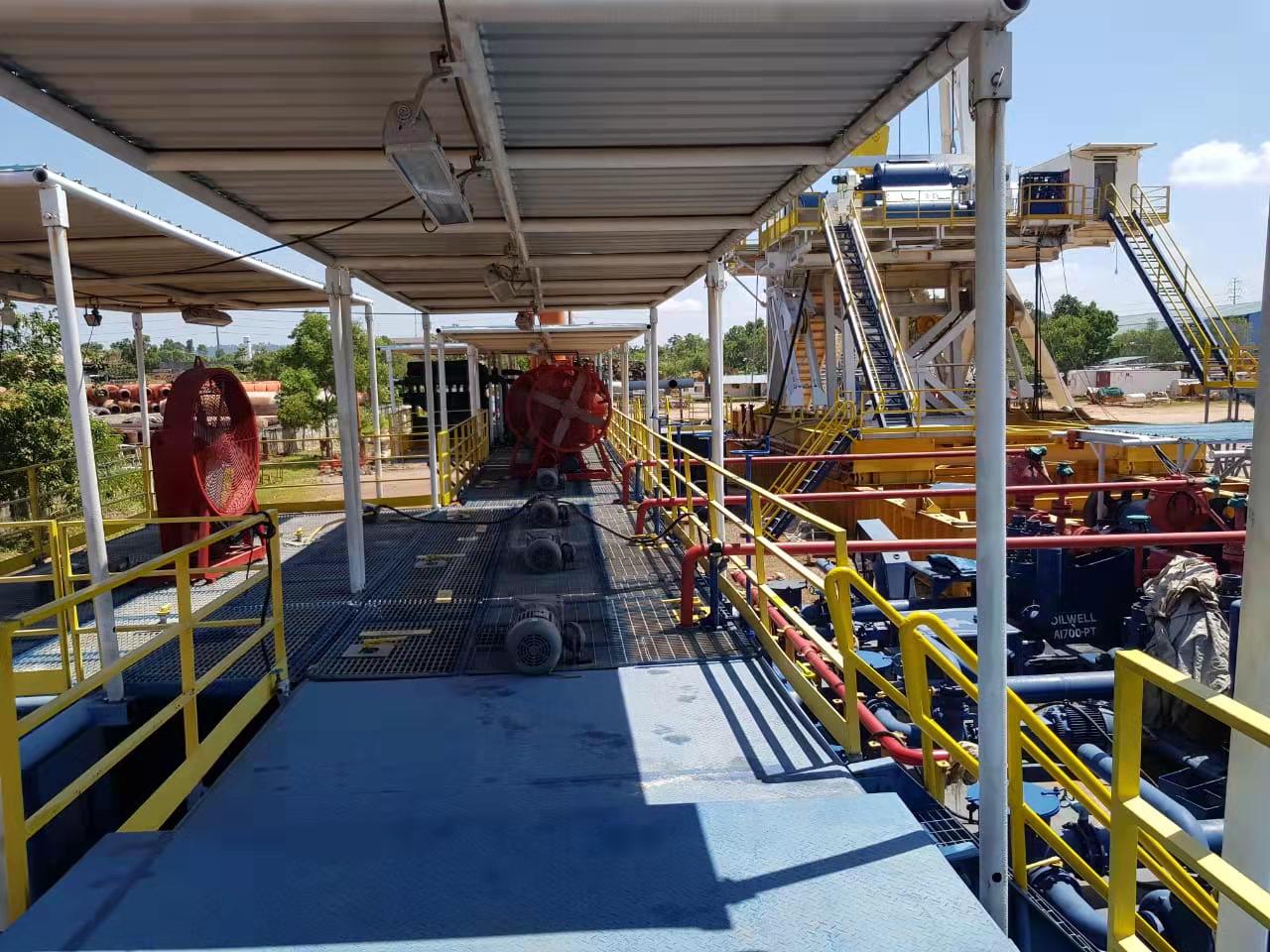

MUD SYSTEM

Mud Pump Make/Model:4 x BOMCO Honghua F-1600

Max Rated Input:1,176KW(1,600HP)

Stand Pipe Assembly:2 x 3-1/2"-7,500 ps

Shake Shaker:3 x Demick Flc2000-4p

Desander:3 x 10" Cones

Desilter:SB6" x 8" J-13"

Mud Degasser:Demick Flo-1200

Mud Gas Separtor: Honghua, 1,200mm

                 :WP 0.7 Mpa

WELL CONTROL EQUIPMENT

BOP Spherical:21-1/4" x 2K-FHS4-1-4

              :13-5/8" x 5K-FHZ35-35

BOP Single Rams：13-5/8" x 10K-FZ35-70

BOP Double Rams:21-1/4" x 2K-2FZ54-14

                :13-5/8" x 10K-2FZ35-70

Choke Manifold:JYG-70 3-1/16" 10,000psi

Kill Manifold:2-1/16" 10,000psi

Accurnulator Unit:ZHYZ1000II,1,0001 cap
