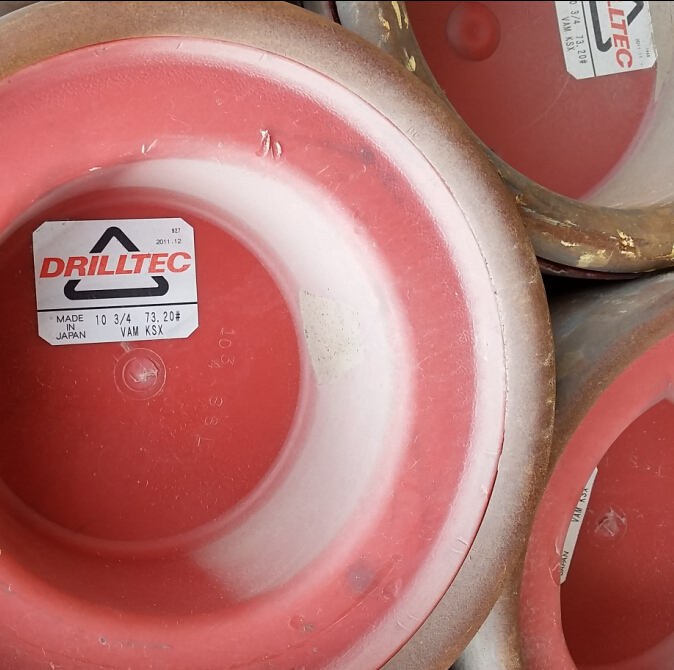

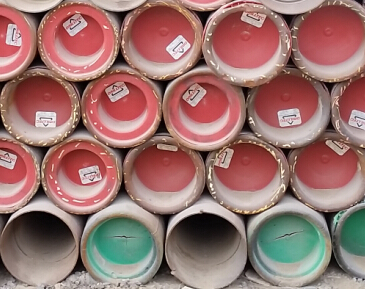

Drilltec Made in Japan 10 3/4" 73.20# Vam KSX
|
Casing Specification (1) | ||||||||||||
|
OD |
Weight |
OD |
Wall Thickness |
End Type | ||||||||
|
Steel Grade | ||||||||||||
|
ln. |
mm |
ln. |
mm |
H-40 |
J-55 K-55 |
L-80 C-95 |
N-80 |
C-90 T-95 |
P-110 |
Q-125 | ||
|
4 1/2" |
9.5 |
4.500 |
114.30 |
0.205 |
5.21 |
S |
S |
-- |
-- |
-- |
-- |
-- |
|
10.50 |
4.500 |
114.30 |
0.224 |
5.69 |
-- |
SB |
-- |
-- |
-- |
-- |
-- | |
|
11.60 |
4.500 |
114.30 |
0.250 |
6.35 |
-- |
SLB |
LB |
LB |
LB |
LB |
-- | |
|
13.50 |
4.500 |
114.30 |
0.290 |
7.37 |
-- |
-- |
LB |
LB |
LB |
LB |
-- | |
|
15.10 |
4.500 |
114.30 |
0.337 |
8.56 |
-- |
-- |
-- |
-- |
-- |
LB |
LB | |
|
5" |
18.00 |
5.000 |
127.00 |
0.362 |
9.19 |
-- |
-- |
LB |
LB |
LB |
LB |
LB |
|
5-1/2" |
17.00 |
5.500 |
139.70 |
0.304 |
7.72 |
-- |
SLB |
LB |
LB |
LB |
LB |
-- |
|
20.00 |
5.500 |
139.70 |
0.361 |
9.17 |
-- |
-- |
LB |
LB |
LB |
LB |
-- | |
|
23.00 |
5.500 |
139.70 |
0.415 |
10.54 |
-- |
-- |
LB |
LB |
LB |
LB |
LB | |
|
Casing Specification (2) | ||||||||||||
|
OD |
Weight |
OD |
Wall Thickness |
End Type | ||||||||
|
Steel Grade | ||||||||||||
|
ln. |
mm |
ln. |
mm |
H-40 |
J-55 K-55 |
L-80 C-95 |
N-80 |
C-90 T-95 |
P-110 |
Q-125 | ||
|
7" |
23.00 |
7 |
177.8 |
0.300 |
7.62 |
S |
-- |
-- |
-- |
-- |
-- |
-- |
|
26.00 |
7 |
1 77.8 |
0.328 |
8.33 |
-- |
SLB |
LB |
LB |
LB |
LB |
-- | |
|
29.00 |
7 |
1 77.8 |
0.375 |
9.53 |
-- |
-- |
L B |
LB |
LB |
LB |
-- | |
|
32.00 |
7 |
177. 8 |
0.430 |
10.92 |
-- |
-- |
LB |
LB |
LB |
LB |
-- | |
|
35.00 |
7 |
177. 8 |
0.500 |
12.70 |
-- |
-- |
LB |
LB |
LB |
LB |
LB | |
|
9-5/8" |
40.00 |
9.625 |
244.48 |
0.395 |
10.03 |
-- |
SLB |
LB |
LB |
LB |
-- |
-- |
|
43.50 |
9.625 |
244.48 |
0.435 |
11.05 |
-- |
-- |
LB |
LB |
LB |
LB |
-- | |
|
47.00 |
9.625 |
244.48 |
0.472 |
11.99 |
-- |
-- |
LB |
LB |
LB |
LB |
LB | |
|
53.50 |
9.625 |
244.48 |
0.545 |
13.84 |
-- |
-- |
LB |
LB |
LB |
LB |
LB | |
|
58.40 |
9.625 |
244.48 |
0.595 |
15.11 |
-- |
-- |
LB |
LB |
LB |
LB |
LB | |
|
Casing Specification (3) | ||||||||||||
|
OD |
Weight |
OD |
Wall Thickness |
End Type |
| |||||||
|
Steel Grade |
| |||||||||||
|
ln. |
mm |
ln. |
mm |
H-40 |
J-55 K-55 |
L-80 C-95 |
N-80 |
P-110 |
Q-125 |
| ||
|
10-3/4 " |
51.00 |
10.75 |
273.05 |
0.450 |
11.43 |
-- |
SB |
SB |
SB |
SB |
-- |
|
|
55.50 |
10.75 |
273.05 |
0.495 |
12.57 |
-- |
-- |
SB |
SB |
SB |
-- |
| |
|
60.70 |
10.75 |
273.05 |
0.545 |
13.84 |
-- |
-- |
-- |
-- |
SB |
SB |
| |
|
13 3/8 " |
48.00 |
13.375 |
339.73 |
0.330 |
8.38 |
S |
-- |
-- |
-- |
-- |
-- |
|
|
54.50 |
13.375 |
339.73 |
0.380 |
9.65 |
-- |
SB |
-- |
-- |
-- |
-- |
| |
|
61.00 |
13.375 |
339.73 |
0.430 |
10.92 |
-- |
SB |
-- |
-- |
-- |
-- |
| |
|
68.00 |
13.375 |
339.73 |
0.480 |
12.19 |
-- |
SB |
SB |
SB |
SB |
-- |
| |
|
72.00 |
13.375 |
339.73 |
0.514 |
13.06 |
-- |
-- |
SB |
SB |
SB |
SB |
| |
|
16 " |
|
|
|
|
|
|
|
|
|
|
|
|
|
18-5/8 " |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| |
|
20 " |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| |
|
|
|
|
|
|
|
|
|
|
|
|
| |
|
P -- Plain; S -- STC; L -- LTC; B -- BTS |
| |||||||||||
