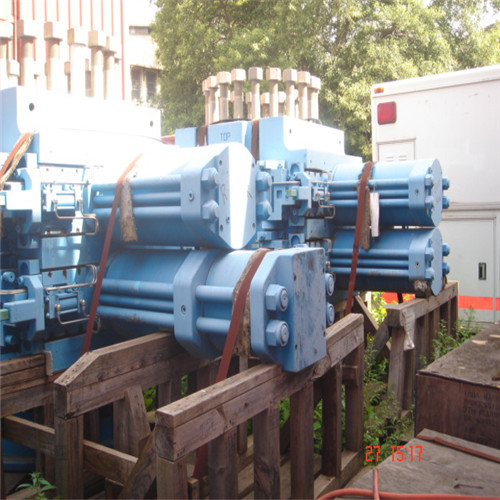

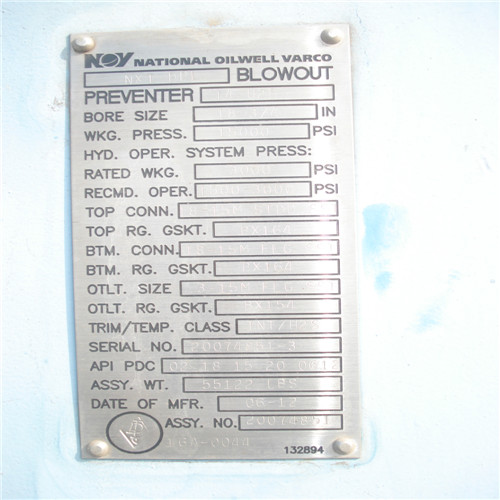

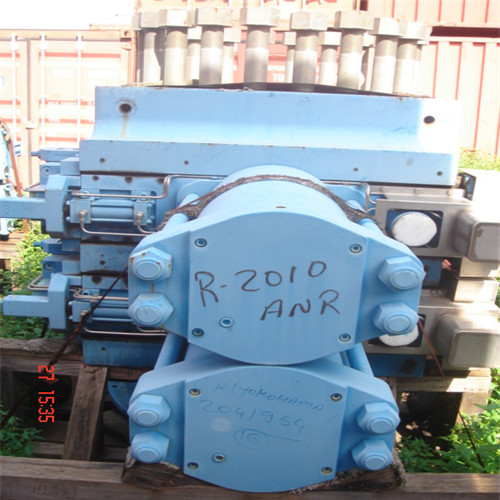

1.18-3/4”-15 M DOUBLE  RAM   PREVENTER ASSEMBLIES

MAKE- NATIONAL OILWELL VARCO,USA

MODEL: NXT  DBL
BLOWOUT PREVENTER  -14 U2B
BORE SIZE- 18 ¾ IN
WKG. PRESS- 15000 PSI
HYD.OPER.SYSTEM PRESS
RATED WKG. – 3000 PSI
TOP CONN. – 18-15M  STDD SST
TOP RG GASKT – BX164
BTM CONN-18-15M FLG SST
BTM RG GASKIT-BX164
OLT SIZE- 3-15M FLG SST
OTLT RG GSKT – BX154
TRIM/TEMP GLASS-  INT/H2S
SERIAL NO –20074851-3
API PDC – 02-18-15-20-0612
ASSY WT. – 55122 LBS
MFG. –06/12

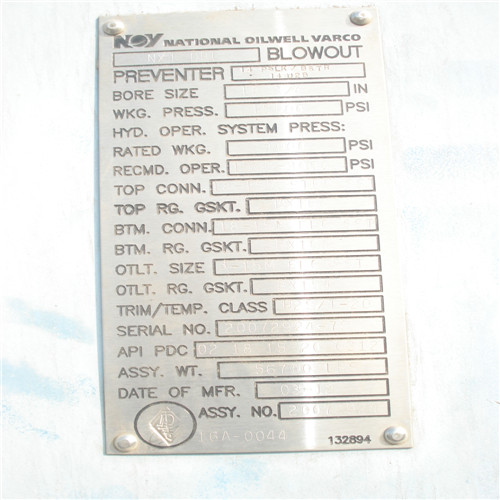

2.18-3/4”-15 M DOUBLE  RAM   PREVENTER ASSEMBLIES

MAKE- NATIONAL OILWELL VARCO,USA

MODEL: NXT  DBL
BLOWOUT PREVENTER  -14PSLK/BSTR -  14U2B
BORE SIZE- 18 ¾ IN
WKG. PRESS- 15000 PSI
HYD.OPER.SYSTEM PRESS
RATED WKG. – 3000 PSI
RECMD OPER.-1500-3000 PSI
TOP CONN. – 18-15M  FLG SST
TOP RG GASKT – BX164
BTM CONN-18-15M FLG SST
BTM RG GASKIT-BX164
OLT SIZE- 3-15M FLG SST
OTLT RG GSKT – BX154
TRIM/TEMP GLASS- H2S/T-20
SERIAL NO – 20072924-79
API PDC – 02-18-15-20-0312
ASSY WT. – 56700 LBS
MFG. – 03-12

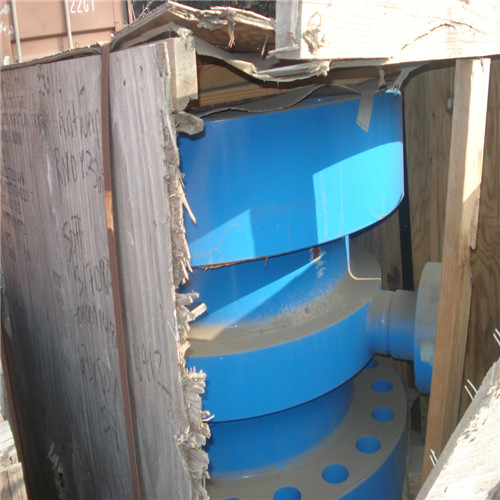

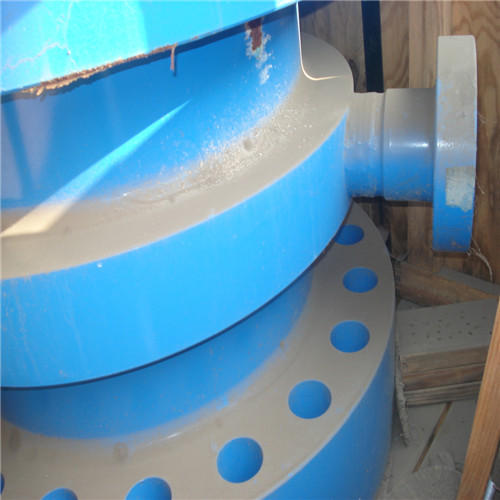

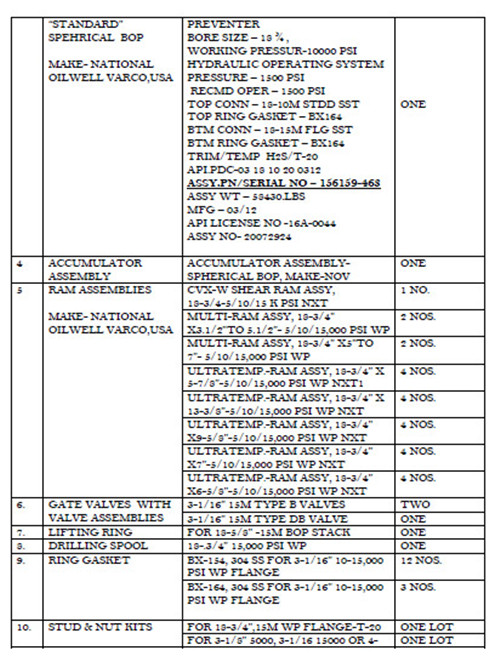

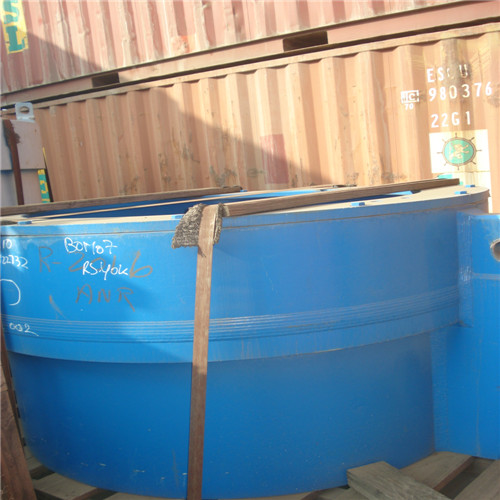

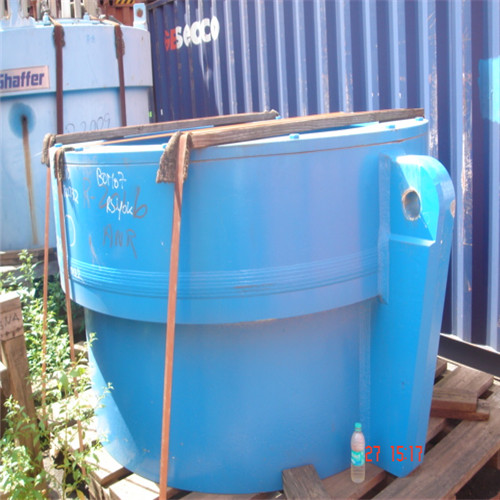

3.18-3/4” -10M “STANDARD”  SPEHRICAL  BOP

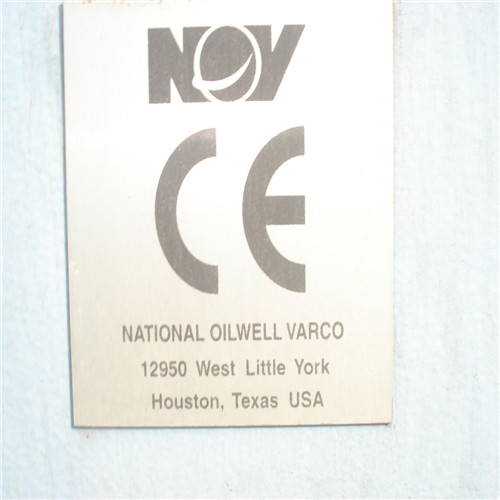

MAKE- NATIONAL OILWELL VARCO,USA

SPHERICAL BLOWOUT PREVENTER
BORE SIZE – 18 ¾ ,
WORKING PRESSUR-10000 PSI
HYDRAULIC OPERATING SYSTEM PRESSURE – 1500 PSI
 RECMD OPER – 1500 PSI
TOP CONN – 18-10M STDD SST
TOP RING GASKET – BX164
BTM CONN – 18-15M FLG SST
BTM RING GASKET – BX164
TRIM/TEMP  H2S/T-20
API.PDC-03 18 10 20 0312
ASSY.PN/SERIAL NO – 156159-463
ASSY WT – 58430.LBS
MFG – 03/12
API LICENSE NO -16A-0044
ASSY NO- 20072924

4.ACCUMULATOR ASSEMBLY  ACCUMULATOR ASSEMBLY-SPHERICAL BOP, MAKE-NOV ONE

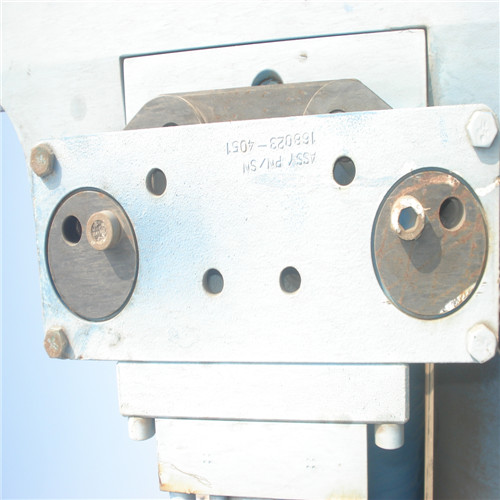

5.RAM ASSEMBLIES

MAKE- NATIONAL OILWELL VARCO,USA
 CVX-W SHEAR RAM ASSY,
18-3/4-5/10/15 K PSI NXT  1 NO.
MULTI-RAM ASSY, 18-3/4” X3.1/2”TO 5.1/2”- 5/10/15,000 PSI WP 2 NOS.
MULTI-RAM ASSY, 18-3/4” X5”TO 7”- 5/10/15,000 PSI WP 2 NOS.
ULTRATEMP.-RAM ASSY, 18-3/4” X
5-7/8”-5/10/15,000 PSI WP NXT1   4 NOS.
ULTRATEMP.-RAM ASSY, 18-3/4” X
13-3/8”-5/10/15,000 PSI WP NXT   4 NOS.
ULTRATEMP.-RAM ASSY, 18-3/4”
X9-5/8”-5/10/15,000 PSI WP NXT   4 NOS.
ULTRATEMP.-RAM ASSY, 18-3/4”
X7”-5/10/15,000 PSI WP NXT   4 NOS.
ULTRATEMP.-RAM ASSY, 18-3/4”
X6-5/8”-5/10/15,000 PSI WP NXT   4 NOS.
6.GATE VALVES  WITH VALVE ASSEMBLIES  3-1/16” 15M TYPE B VALVES TWO
3-1/16” 15M TYPE DB VALVE ONE
7.LIFTING RING FOR 18-5/8” -15M BOP STACK   ONE
8.DRILLING SPOOL  18-.3/4” 15,000 PSI WP  ONE
9.RING GASKET BX-154, 304 SS FOR 3-1/16” 10-15,000 PSI WP FLANGE 12 NOS.
  BX-164, 304 SS FOR 3-1/16” 10-15,000 PSI WP FLANGE     3 NOS.
10.STUD & NUT KITS   FOR 18-3/4”,15M WP FLANGE-T-20 ONE LOT
FOR 3-1/8” 5000, 3-1/16 15000 OR 4-16” 3000 PSI WP FLANGE ONE LOT

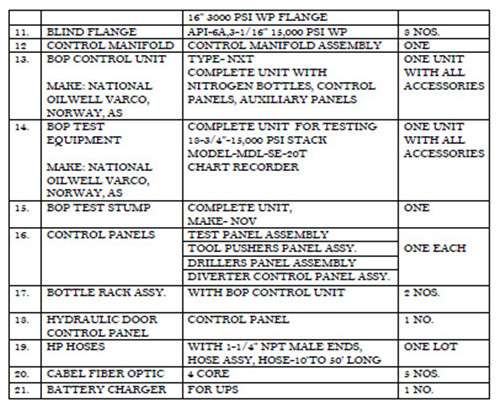

11.BLIND FLANGE API-6A,3-1/16” 15,000 PSI WP 8 NOS.
12.CONTROL MANIFOLD  CONTROL MANIFOLD ASSEMBLY  ONE
13.BOP CONTROL UNIT
MAKE: NATIONAL OILWELL VARCO, NORWAY, AS TYPE- NXT
COMPLETE UNIT WITH NITROGEN BOTTLES, CONTROL PANELS, AUXILIARY PANELS  ONE UNIT WITH ALL ACCESSORIES
14.BOP TEST EQUIPMENT
MAKE: NATIONAL OILWELL VARCO, NORWAY, AS COMPLETE UNIT  FOR TESTING
18-3/4”-15,000 PSI STACK
MODEL-MDL-SE-20T
CHART RECORDER ONE UNIT WITH ALL ACCESSORIES
15.  BOP TEST STUMP COMPLETE UNIT,
MAKE- NOV ONE
16. CONTROL PANELS  TEST PANEL ASSEMBLY
ONE EACH
  TOOL PUSHERS PANEL ASSY.
  DRILLERS PANEL ASSEMBLY
  DIVERTER CONTROL PANEL ASSY.
17.BOTTLE RACK ASSY. WITH BOP CONTROL UNIT 2 NOS.

18.HYDRAULIC DOOR CONTROL PANEL CONTROL PANEL 1 NO.
19.HP HOSES  WITH 1-1/4” NPT MALE ENDS, HOSE ASSY, HOSE-10’TO 50’ LONG  ONE LOT
20.CABEL FIBER OPTIC 4 CORE  5 NOS.
21.BATTERY CHARGER FOR UPS 1 NO.
